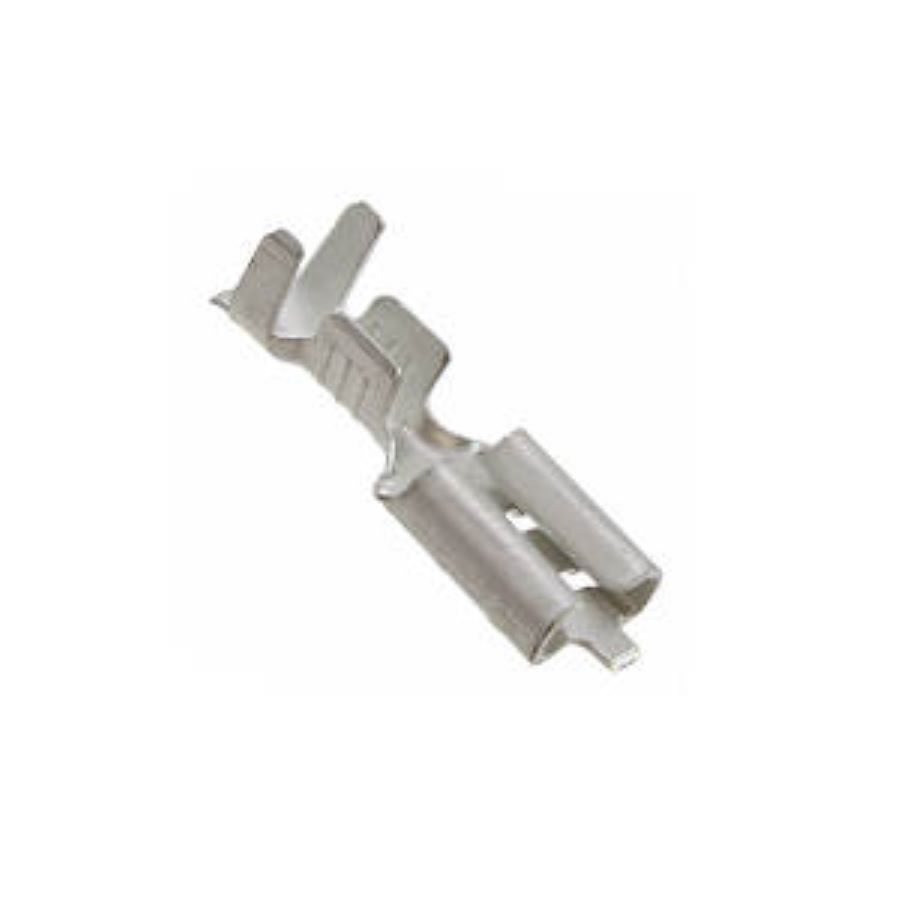

170037-2
Manufacturer:
TE Connectivity
Mfr.Part #:
170037-2
Datasheet:
Description:
Terminals Free Hanging 16 AWG Female
| Parameter | Value |
|---|---|
| Length | 16.6 mm |
| Width | 5.6 mm |
| Termination | Receptacle |
| Material | Brass |
| Packaging | Reel |
| Depth | 5.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Receptacle |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 4.7498 mm |
| Wire/Cable Diameter | 3.302 mm |
| Wire/Cable Gauge | 16 AWG |
| Insulation | Non-Insulated |
| Wire/Cable Type | Discrete |
| Wire Gauge (Max) | 16 AWG |
| Wire Gauge (Min) | 20 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 3.302 mm |
| Body Plating | Tin |
| Insulated Wire Support | Yes |
| Mating Tab Width | 4.75 mm |
| Tab Length | 6.4008 mm |
| Tab Thickness | 508 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 4.75 mm x 0.51 mm |
Stock: 16686
Distributors
pcbx
pcbxUnit Price$0.32602
Ext.Price$0.32602
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32602 | $0.32602 |
| 10 | $0.16301 | $1.63010 |
| 50 | $0.12539 | $6.26950 |
| 100 | $0.09645 | $9.64500 |
| 500 | $0.07419 | $37.09500 |
| 1000 | $0.05707 | $57.07000 |
| 3000 | $0.04390 | $131.70000 |
| 5000 | $0.03377 | $168.85000 |
| 10000 | $0.02813 | $281.30000 |
